MSE Wall
Client : Hemaraj Eastern Seaboard Industrial Estate Co., Ltd.
Contractor : Envi 101 Co., Ltd.
Value : 5,580,000 Baht
Year : 2014
ปัญหา : พื้นที่ด้านหลังของที่ดินเป็นเชิงลาด มีความสูง 4-10 เมตร ทำให้ slope แปลงเข้าไปในที่ดินชาวบ้าน ทำใหเเกิดความสูญเสียพื้นที่ของโรงงาน จึงต้องสร้างกำแพงกันดินขึ้นมา
สถานที่ : Plot D60 – D62 , Hemaraj Eastern Seaboard Industrial Estate
ภาพแปลนแนว Slope ที่ล้ำเขตที่ดินชาวบ้าน
ภาพการทำกำแพงกันดินโดยใช้กระสอบ และ Geogrid ที่แปลง D60-62
ภาพการทำกำแพงกันดินโดยใช้กระสอบ และ Geogrid ที่แปลง D60-62
MSE Wall using Gabion and Q-wall facing with Geogrid reinforcement
Client : Hemaraj Eastern Seaboard Industrial Estate Co., Ltd.
Contractor : Envi 101 Co., Ltd.
Value : 10,500,000 Baht
Year : 2013
ปัญหา : พื้นที่ด้านหลังของที่ดินเป็นเชิงลาด มีความสูง 5-10 เมตร ทำให้เกิดความสูญเสียพื้นที่ของโรงงาน จำเป็นต้องสร้างกำแพงกันดินขึ้นมา
สถานที่ : Siam Industrial Wire , Hemaraj Rayong Industrial Land
ภาพแปลน และภาพตัด Section โรงงานสยามลวด (SIW)
รูปภาพกำแพงกันดินโดยใช้ Q-wall และ Geogrid
MSE wall using Soil bag facing with geogrid reinforcement
Client : Hemaraj Rayong Industrial Land
Contractor : Envi 101 Co., Ltd.
Value : 1,200,000 Baht
Year : 2013
ปัญหา : ด้านท้ายและด้านข้างของที่ดินแปลง A11B ขนานกับถนนที่ลดระดับลง ทำให้ slope แปลงไปในเข้าเขตทาง
สถานที่ : Plot A11B , Hemaraj Rayong Industrial Land
ภาพแปลนการก่อสร้างกำแพงดินโดยใช้กระสอบทราย
ภาพระหว่างการก่อสร้างกำแพงกันดินโดยใช้กระสอบทราย
MSE wall using Soil bag facing with geogrid reinforcement (High = 4.0 m)
Client : Hemaraj Rayong Industrial Land
Contractor : Envi 101 Co., Ltd.
Value : 1,000,000 Baht
Year : 2013
ปัญหา : Slope ของที่ดินแปลง Z63 – Z64 ทับบริเวณแนวท่อแก๊ส จำเป็นต้องปรับความลาดเอียงของเชิงลาดใหม่
โดยการใช้ MSE wall
สถานที่ : Plot Z63-Z64 , Hemaraj Chonburi Industrial Estate 1
Steep Reinforced Slope
(High = 3.0 – 5.0 m)
Client : Hemaraj Land and Development Co., Ltd.
Contractor : Envi 101 Co., Ltd.
Value : 590,000 Baht
Year : 2017
ปัญหา : Slope ของที่ดินแปลง G24 ล้ำเข้าไปในเขตถนน จำเป็นต้องปรับความลาดเอียงของเชิงลาดใหม่
สถานที่ : Plot G24 , Hemaraj Eastern Seaboard Industrial Estate 2
ภาพกำแพงกันดินแบบใช้กระสอบและ Geogrid
A title
Image Box text

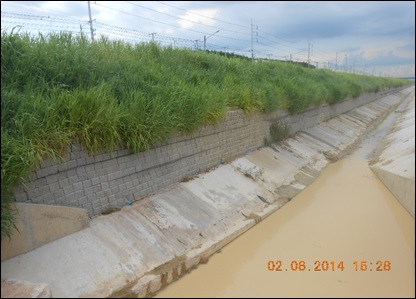

MSE wall using Pisa II block and geogrid reinforcement (High = 2.0 – 3.0 m.)
Client : Hemaraj Eastern Seaboard Industrial Estate Co., Ltd.
Contractor : Envi 101 Co., Ltd.
Value : 800,000 Baht
Year : 2014
ปัญหา : ไหล่ทางของถนน R1A ล้ำเข้าไปในแนวคลองระบายน้ำด้านข้าง จึงจำเป็นต้องสร้างกำแพงกันดินมาป้องกันไว้
สถานที่ : Road R1A , Hemaraj Eastern Seaboard Industrial Estate
ภาพแพลนตัด Section กำแพงกันดินโดยใช้ PISA II และ Geogrid
MSE wall using Gabion facing with geogrid reinforcement (High = 14.0 m.)
Client : Hemaraj Eastern Seaboard Industrial Estate Co., Ltd.
Contractor : Envi 101 Co., Ltd.
Value : 7,600,000 Baht
Year : 2018
ปัญหา : พื้นที่ด้านทิศตะวันตกของโรงงานมีการตัดดิน ความสูง 14.0 เมตร หากแต่ง Slope ปกติด้วยความลาดชัน 1:1.5
จะทำให้สูญเสียพื้นที่ของโรงงาน จำเป็นต้องสร้างกำแพงกันดินขึ้นมา
สถานที่ : Continental Factory , Hamaraj Eastern Seaboard Industrial Estate 4
